CZ82 high voltage paper dielectric capacitor

  • Séries: CZ82
  • Tension de travail Gamme: 2kV~30kVdc
  • Gamme de capacité: 0.01uF ~ 10uF
  • Température de fonctionnement: -55°C ~ +70°C
  • Charger la vie: --
  • Application: DC Filter and pulsing circuits



Manuel Télécharger Produit (fichier PDF) Envoyer un e-mail à nous!

■ Introduction du produit

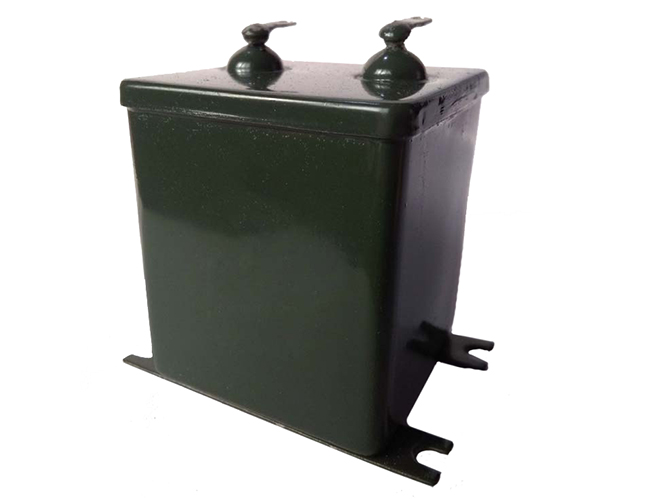

CZ82 High voltage seaed paper dielectric capacitor
Features:

● Metal box, sealed structure with insulation ceramic terminals, excellent wet proof
● 16 box dimensions, rated voltage scope: 2Kv-30Kv, rated capacitance scope: 0.01uF-10uF
● Quality impregnating materials, stable capacitance, excellent heat radiation
Application:
● Applied in DC and pulsing circuits
● Be used to filter out high frequency harmonics of the power grid and improve the quality of the power grid.

■ Specification
● Standard: SJ1249-77
● Climate category: 55/070/10
● Capacitance tolerance: ± 5% ;± 10%
● Dissipation factor: ≤ 0.01
● Insulation resistance: ≥ 3000S
    UR ≤ 0.22µF ≥ 10000M Ω
    UR > 0.22µF ≥ 2000S
● Withstand voltage:
    UR ≤ 15KV 2UR
    UR ≥ 20KV 1.5UR

Rating Specification below:
Rated Voltage
Capacitance(µF)
Dimensions(mm) Order P/N
L B H
2kV 0.01uF 53 22 50 MXCZ82103K202A
2kV 0.047uF 53 32 50 MXCZ82473K202A
2kV 0.1uF 53 32 50 MXCZ82104K202A
2kV 0.22uF 53 32 70 MXCZ82223K202A
2kV 0.47uF 73 42 70 MXCZ82473K202A
2kV 1uF 73 42 110 MXCZ82105K202A
2kV 2uF 85 64 130 MXCZ82205K202A
2kV 4uF 140 75 145 MXCZ82405K202A
2kV 8uF 154 112 145 MXCZ82805K202A
2kV 10uF 154 112 190 MXCZ82106K202A
3kV 0.1uF 53 32 70 MXCZ82104K302A
3kV 0.22uF 73 42 70 MXCZ82224K302A
3kV 0.47uF 85 64 85 MXCZ82474K302A
3kV 1uF 85 64 130 MXCZ82105K302A
3kV 2uF 140 76 145 MXCZ82205K302A
3kV 4uF 154 112 145 MXCZ82405K302A
3kV 6uF 154 112 190 MXCZ82605K302A
4kV 0.047uF 73 42 70 MXCZ82473K402A
4kV 0.1uF 73 42 70 MXCZ82104K402A
4kV 0.22uF 85 64 85 MXCZ82224K402A
4kV 0.47uF 85 64 130 MXCZ82474K402A
4kV 1uF 140 76 145 MXCZ82105K402A
4kV 2uF 154 112 145 MXCZ82205K402A
4kV 4uF 270 70 325 MXCZ82405K402A
4kV 6uF 270 120 325 MXCZ82605K402A
6.3kV 0.01uF 85 64 85 MXCZ82103K632A
6.3kV 0.047uF 85 64 85 MXCZ82473K632A
6.3kV 0.1uF 85 64 85 MXCZ82104K632A
6.3kV 0.22uF 85 64 130 MXCZ82224K632A
6.3kV 0.47uF 140 75 145 MXCZ82474K632A
6.3kV 1uF 154 112 145 MXCZ82105K632A
6.3kV 2uF 270 70 325 MXCZ82205K632A
6.3kV 4uF 270 120 325 MXCZ82405K632A
8kV 0.1uF 85 64 130 MXCZ82104K802A
8kV 0.22uF 140 76 145 MXCZ82224K802A
8kV 0.47uF 154 112 145 MXCZ82474K802A
8kV 1uF 270 70 325 MXCZ82105K802A
8kV 2uF 270 120 325 MXCZ82205K802A
10kV 0.01uF 105 76 110 MXCZ82103K103A
10kV 0.022uF 105 76 110 MXCZ82223K103A
10kV 0.047uF 105 76 110 MXCZ82473K103A
10kV 0.1uF 140 76 145 MXCZ82104K103A
10kV 0.22uF 154 112 215 MXCZ82224K103A
10kV 0.47uF 154 112 145 MXCZ82474K103A
10kV 1uF 270 120 325 MXCZ82105K103A
10kV 2uF 320 120 325 MXCZ82205K103A
15kV 0.01uF 140 76 110 MXCZ82103K153A
15kV 0.022uF 140 76 110 MXCZ82223K153A
15kV 0.047uF 1401 76 110 MXCZ82473K153A
15kV 0.1uF 154 112 145 MXCZ82104K153A
15kV 0.22uF 270 120 325 MXCZ82224K153A
15kV 0.47uF 154 110 215 MXCZ82474K153A
15kV 1uF 320 120 385 MXCZ82105K153A
15kV 2uF 320 180 385 MXCZ82205K153A
20kV 0.1uF 154 112 215 MXCZ82104K203A
20kV 0.22uF 320 120 385 MXCZ82224K203A
20kV 0.47uF 270 120 385 MXCZ82474K203A
30kV 0.1uF 270 120 325 MXCZ82104K303A
30kV 0.22uF 320 120 385 MXCZ82224K303A
30kV 0.47uF 320 180 385 MXCZ82474K303A

Draw:
                     Type 1                                                        Type 2                                                         Type3
Draw CZ82 high voltage paper dielectric capacitor
